1200℃ آلة اختبار الشد للفرن ذو درجة الحرارة العالية

وصف

1200℃ High Temperature Furnace

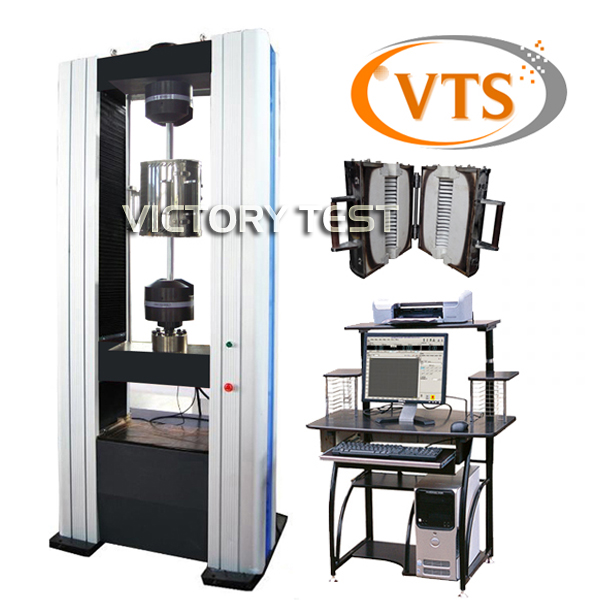

High Temperature Tensile Testing Machine 200kN, 300كيلو نيوتن

مقدمة:

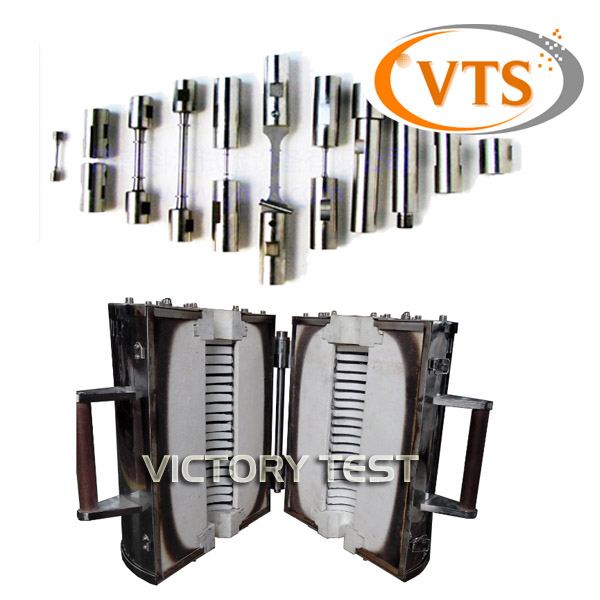

It adopts three section two sides opened high temperature furnace, it is electrical heating type high temperature resistance furnace. The temperature control range is 300~1200℃. It is an ideal high temperature furnace for metal materials or non-metal materials’ physical property test under high temperature.

The testing testing machine has various load capacity, like 50kN, 100كيلو نيوتن, 200كيلو نيوتن, 300كيلو نيوتن, إلخ.
المؤشرات الفنية الاساسية:
1. Work temperature: 300~1200℃
2. Length of soaking zone: 100مم
3. Heating rate: ≥800℃/h
4. Heating component: φ1.5mm resistance wire
5. Temperature measuring component: K type, N type and
S type thermocouple
6. Heating section: 3 section
7. Sensitivity of temperature measuring: 0.1°C
8. Accuracy of temperature measuring: 0.2°C
9. Constant temperature control accuracy:
100~600℃ ( ±2℃), 600~900℃ (±2.5℃), >900 °C (±3℃)
10. Temperature control gradient:
100~600℃ (2°C), 600~900℃ (3°C), >900 °C (±4℃)
11. Furnace inside dimension: φ90×320mm
12. Furnace outside dimension: φ320×380mm
13. Working power supply: 3-مرحلة, 380الخامس, 5.5كيلوواط

We have High Temperature Tensile Testing Machine, like 200kN, 300كيلو نيوتن, إلخ.
