XHB-3000 Digital Brinell Hardness Tester-VTS الصيني الشركة المصنعة

وصف

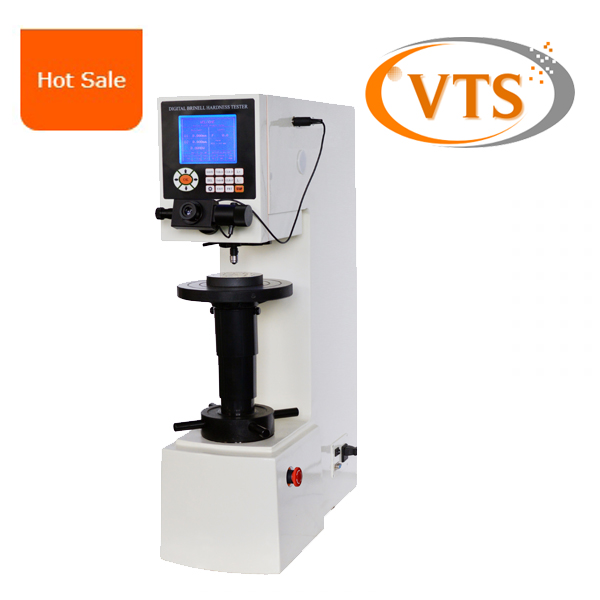

XHB-3000 Digital Brinell Hardness Tester

VTS الشركة المصنعة الصينية

(3000KGF, digital display)

التطبيقات:

XHB-3000 Digital Brinell Hardness Tester adopts is a half automatic and intelligent Brinell hardness testing machine, it adopts the pressure sensor instead of traditional quality weight, this innovative design makes the instrument more accurate. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.

يقدم

1.Hardness is one of the important indices of material mechanical performance. And hardness test is the important means to determine metal material or the quality of product parts. Because of the corresponding relation between metal hardness and other mechanical performance, لذلك, most metal materials can be measured the hardness to approximately calculate the other mechanical performance, such as strength, تعب, creep and wear. Brinell hardness test can satisfy the determination of all the metal material hardness by using different test forces or changing different ball indenters.

2.The instrument adopts precise structure design with three indenter and two objectives and the load of test force is controlled by the sensor. It makes the whole structure compact and loading of test force stable and exact. The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high. Select the scale to start, the instrument will choose the corresponding indenter and objective to realize the automatic measurement.

3.The instrument can apply to the measurement of cast iron, nonferrous metal and alloy material, various annealing, hardening and tempering steel, especially the soft metal such as aluminum, lead, tin etc. which makes the hardness value more correct.

المواصفات الفنية

XHB-3000 Digital Brinell Hardness Tester-VTS الصيني الشركة المصنعة

XHB-3000 Digital Brinell Hardness Tester-VTS الشركة المصنعة الصينية
