Testeur de noir de carbone VTS-3200 – Testeur de haute précision
The reliable and user-friendly carbon black tester for determining carbon black content of polyolefin pipes and fittings.
Carbon black teste:For determination of carbon black content in olefin materials like polye-thylene or polypropylene that do not contain non-volatile additives or fillers. Complying with the standards ASTM D 1603, ISO 18553 and ISO 6964.
- Description
- Demande
Description
Testeur de contenu en noir en carbone
Carbon black tester – high accuracy tester
Description du produit

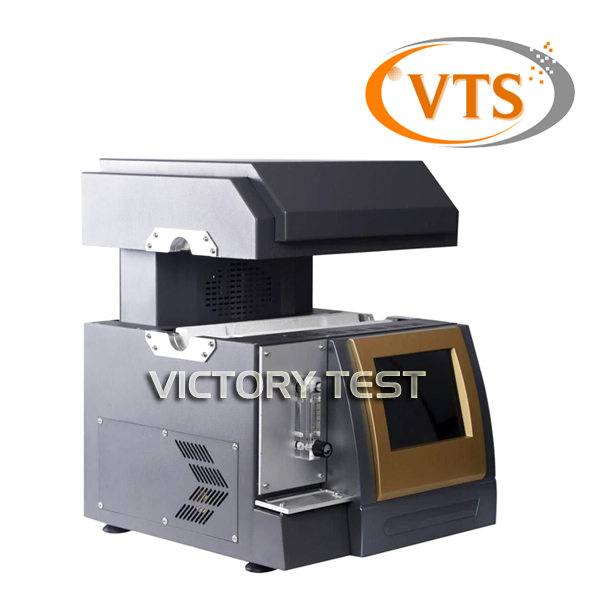

VTS-3200 Carbon Black Content Tester consists of an aluminium frame combined with a high class oven to be configured dependant on standard choice. Tests may be performed for the determination of the carbon black content of thermoplastic materials, such as: polyethylene, polypropylene and polybutene. The carbon black content is determined by means of weight difference.
Caractéristiques:
The User-friendly carbon black tester equipment comprises the electric tube furnace and a side panel. The front panel of the electric tube furnace displays the controls needed to operate the furnace and automatic temperature control. The electric tube furnace is for heating the combustion pipe in which the shuttle is inserted with the sample to be tested. The purpose of the side panel is to support the outside components, namely: the flow meter, the flow control valve, the washing bottle and the drying tube.
Application:
The Carbon Black equipment has been designed and made according to the requirements of the standards: ASTM D1603 and ISO 6964 and serves to determine the carbon black content of thermoplastic materials, such as polyethylene, polypropylene and polybutene. The carbon black content of the material examined is carried out gravimetrically after pyrolysis in nitrogen stream. The method of determination indicated by standards consists in calculating the difference in weight of the sample before and after treatment in the equipment. This method is not applicable to materials that contain non volatile pigments or inorganic. The User-friendly carbon black tester complies with the standards ASTM D 1603, ISO 18553 and ISO 6964.
Standard:
ISO 6964: Determination for the carbon black content of polyethylene pipes and fittings by calcination and pyrolysis, ASTM D1603: Test Method for Carbon Black Content in Olefin Plastics, ISO 18553, etc..
Spécifications techniques
| Afficher | 8-inch capacitive touch screen display |
| Tube size | dia. 40 × 610mm |
| Heating element | high temperature alloy wire |
| Heating area length | 200mm |
| Temperature area length | 100mm |
| Operating temperature | ≤ 1200 ℃ |
| The maximum temperature | 1200 ℃ |
| Temperature accuracy | ± 0.5 ℃ |
| Sensibilité | 0.01℃ |
| Heating rate | 1℃ ~ 50℃ / min |
| Pouvoir | ≤ 1KW |
| Working voltage | AC220V / 50Hz / 60Hz |
| Atmosphere | two paths |
| Atmosphere switch | fully automatic |
