מכונת בדיקת כיפוף אוטומטית ASTM A615
Automatic Bending and Compound Bending Test Machine for Steel Bars Automatic Bending and Compound Bending Test Machine for Steel Bars is used for automatic bending tests and compound bending tests of steel bars and special-shaped steel bars.
תקן בדיקה: ASTM A615 steel bar automatic bending and re-bending testing machine, in line with ISO 15630-1,2,3, ASTM A615/A615M, BS 4449, BS אחד 10025 ותקני בדיקה אחרים.
- תיאור
- חֲקִירָה
תיאור
מכונת בדיקת כיפוף אוטומטית ASTM A615

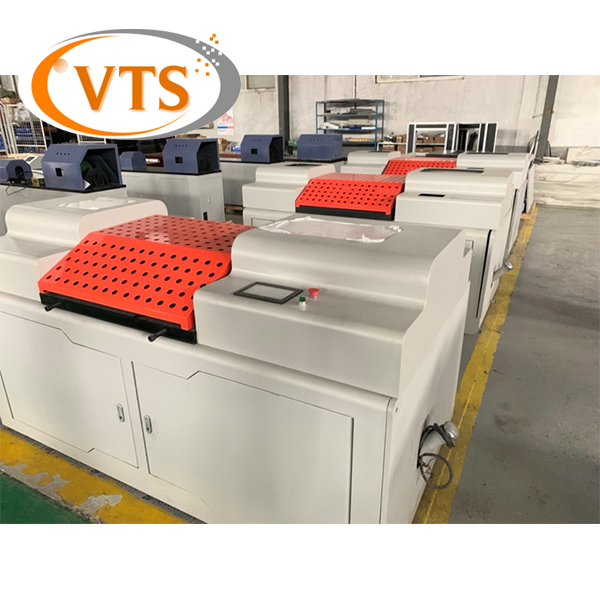

Rebar Automatic Bend Testing Machine
(אוֹטוֹמָטִי, hydraulic servo control loading and unloading)
Applications and Features:

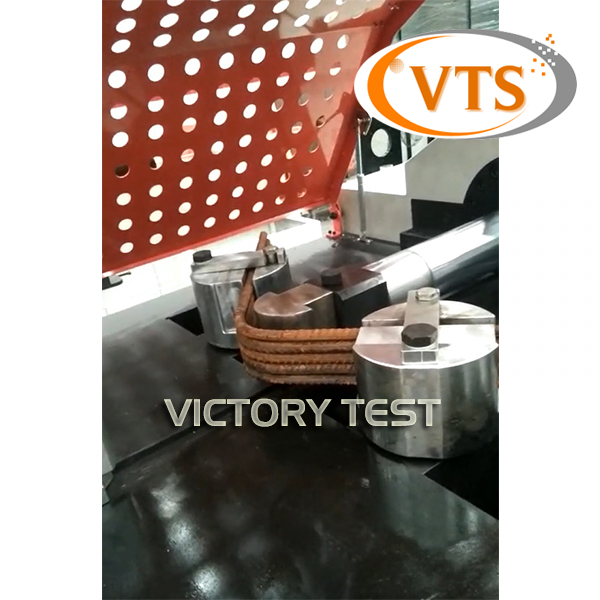

The testing machine is the latest design of our company’s steel bar automatic bending and reverse bending testing machine. Three oil cylinders are used for loading, the mandrel is installed at the front end of the piston rod, and the two curved rollers are driven by the screw, and the span is adjustable. The PLC controls the work of the oil cylinder and the bending angle, and completes the bending and reverse bending at one time. Greatly improved test efficiency.
It has the advantages of compact structure, convenient operation, real-time display of bending and reverse bending angles, רעש חלש, no vibration, long life, and convenient maintenance.
With electric limit switch, it is more flexible and durable to use.
It has the function of secondary molding for 180-degree bending test.
Touch screen control, customers only need to choose the diameter of the test steel bar. The tester automatically adjusts the test range.
Servo control loading and unloading.
תקן בדיקה:
ASTM A615 steel bar automatic bending and re-bending testing machine, in line with ISO 15630-1,2,3, ASTM A615/A615M, BS 4449, BS אחד 10025 ותקני בדיקה אחרים.
Main Specifications:
| דֶגֶם | GW-50C |
| Bending Bar Diameter Range | Φ6-φ50mm |
| Bend Angle Test | 0°-180°（Φ12-Φ36mm） 0°- 90° (Φ6-Φ50mm) |
| Reverse bending test angle | 20°、23°（Φ6-Φ50mm） |
| Maximum loading capacity | 500kN |
| Main piston stroke | 470מ"מ |
| Auxiliary piston stroke | 250מ"מ |
| Hydraulic System Pressure | 31.5MPa |
| Mandrel Diameter Range | Φ18- Φ450mm（OEM） |
| Motorized adjustment of the test span between two support rollers | 0-500מ"מ (one-key adjustment for different diameter rods) |
| Large touch screen control instrument | Automatically save test records |
| Real-time display of bending angle | High precision Japanese encoder |
| Mandrel Diameter Specifications | D= 3~9 Days |
| Full digital servo motor power | 5.5קילוואט (load rate controllable) |
| Motor Power | 3-שלב, 380V, 50הרץ/60 הרץ |
| גודל מארח: (L W H)
| 2000×1000×1100mm |
| Host weight | 2000KG |
