ISO18553 בודק פיזור פחמן שחור-VTS
The Carbon Black Dispersion Tester applies advanced reflected light microscopy and digital image processing techniques to provide a quick, easy, precise, and non-subjective carbon black macrodispersion assessment for rubber compounds. The main benefit of the tester is to avoid costing of over-mixing and under-mixing.
ISO18553 Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds.
- תיאור
- חֲקִירָה
תיאור

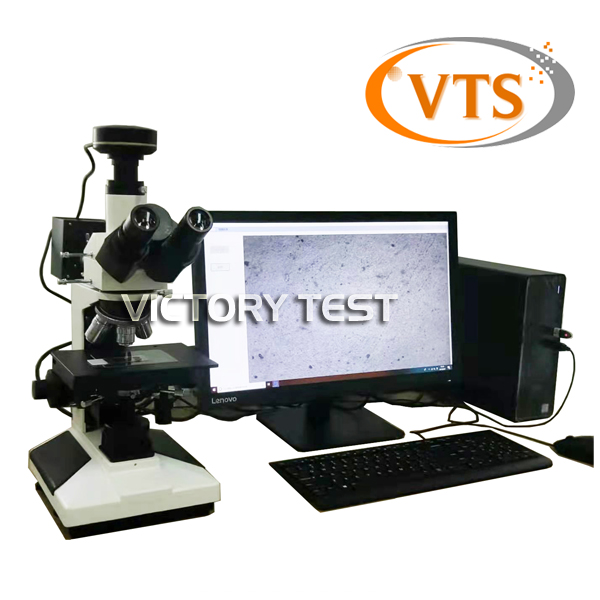

Carbon Black Dispersion Tester
(include computer and printer)
1. תיאור המוצר
1.1. ה Carbon Black Dispersion Tester applies advanced reflected light microscopy and digital image processing techniques to provide a quick, easy, precise, and non-subjective carbon black macrodispersion assessment for rubber compounds. The main benefit of the tester is to avoid costing of over-mixing and under-mixing.
1.2. Carbon Black Dispersion Tester is a testing instrument for the dispersion of pigments or carbon black in polyolefin pipes, pipe fittings and mixed ingredients according to the international standard, כְּמוֹ ISO-18553.
1.3 The instrument is adapted to intelligent software and corresponding microscopes. By measuring the size, shape, and dispersion of carbon black particles, the internal parameters and macroscopic performance indicators such as mechanical properties, antistatic properties, and moisture absorption properties can be established.
2. מפרט טכני
| Test range | 1um- 1cm |
| Imaging resolution | 2592*1944 (5 megapixel digital camera) |
| Test software | Professional test software, Windows 10 |
| Color CMOS image sensor | Pixel size: 2.2μm×2.2μm Spectral response: 400 nm~1100nm Horizontal resolution: 1000 lines הַחְלָטָה: 2592×1944, 1280×1024, 1024×768, 640×480 |
| Communication interface | High speed USB2.0 |
| Sample window hole | 4מ"מ |
| Test area | 1.7×1.25mm |
| Optical enlargement | 1100 פִּי |
| Light source angle | 30° |
| Image size | 640×480, 1024×768, 1280×1024, 2592×1944 |
| מתח עבודה | AC220V, 50הרץ, 2א |
