3つのインデントデジタルBrinell Hardness Teste XHB-3000
試験範囲: 8-650 HBW
Hardness Display: LCD Display
- 説明
- 問い合わせ
説明

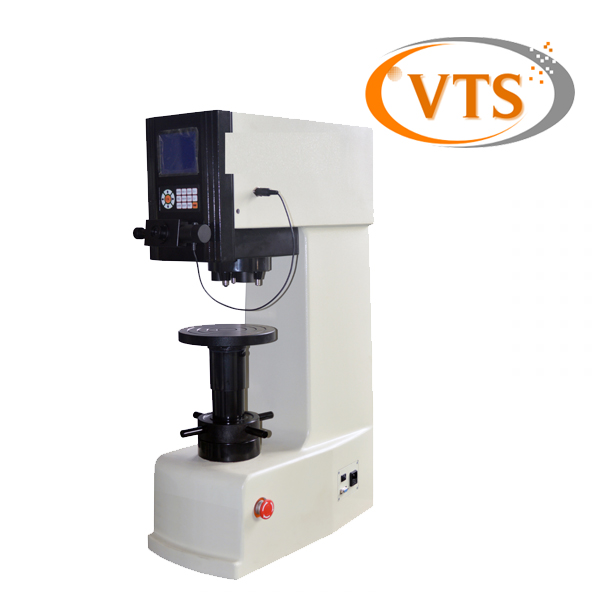

3つのインデントデジタルBrinell Hardness Teste XHB-3000
Digital Brinell Hardness Tester XHB-3000
(3000kgf, デジタルディスプレイ)
アプリケーション:
XHB-3000 Digital Brinell Hardness Tester adopts is a half automatic and intelligent Brinell hardness testing machine, it adopts the pressure sensor instead of traditional quality weight, this innovative design makes the instrument more accurate. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.
導入
3つのインデントデジタルBrinell Hardness Teste XHB-3000
1.Hardness is one of the important indices of material mechanical performance. And hardness test is the important means to determine metal material or the quality of product parts. Because of the corresponding relation between metal hardness and other mechanical performance, therefore, most metal materials can be measured the hardness to approximately calculate the other mechanical performance, such as strength, 倦怠感, creep and wear. Brinell hardness test can satisfy the determination of all the metal material hardness by using different test forces or changing different ball indenters.
2.The instrument adopts precise structure design with three indenter and two objectives and the load of test force is controlled by the sensor. It makes the whole structure compact and loading of test force stable and exact. The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high. Select the scale to start, the instrument will choose the corresponding indenter and objective to realize the automatic measurement.
3.The instrument can apply to the measurement of cast iron, nonferrous metal and alloy material, various annealing, hardening and tempering steel, especially the soft metal such as aluminum, lead, tin etc. which makes the hardness value more correct.
技術仕様
3つのインデントデジタルBrinell Hardness Teste XHB-3000- VTS中国のメーカー
テストフォース | 612.9N (62.5kgf) 4900N (500kgf) 980N (100kgf) 7355N (750kgf) 1226N (125kgf) 9800N (1000kgf) 1839N (187.5kgf) 14700N (1500kgf) 2452N (250kgf) 29400N (3000kgf) |
試験範囲 | 8-650 HBW |
Hardness Display | LCD Display |
顕微鏡の倍率 | 20× Digital Microscope |
試験片の最大高さ | 225mm |
楽器のど | 135mm |
電源 | AC220V/50Hz |
実行基準 | GB/T230.2, JIG112, EN-ISO6508, ASTM E-18 |
全体の寸法 | 789×543 ×225mm |
正味重量 | 130kg |
Three Indenters Digital Brinell Hardness Teste XHB-3000- VTS中国のメーカー
さらに詳しい情報については, お気軽にお問い合わせ下さい: andy@victorytest.com
微信 & ワッツアップ: +86-15305307234
