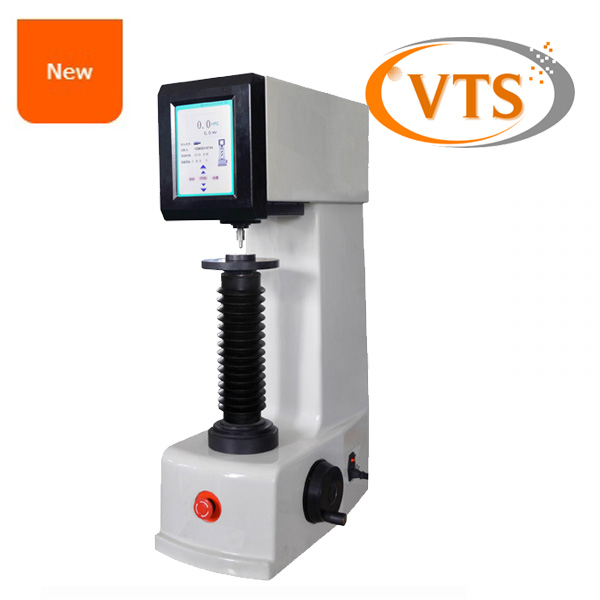

560Penguji Kekerasan Rockwell Berganda RSSZ Automatik
Automatic Rockwell Hardness Tester
Ujian: Rockwell and Superficial Rockwell
- Penerangan
- Siasatan
Penerangan
560Penguji Kekerasan Rockwell Berganda RSSZ Automatik
(Automatic type, Rockwell and Superficial Rockwell, Skrin sentuh)
Julat aplikasi:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Spesifikasi teknikal:
| Model | 560RSSZ |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Kaedah pemuatan | Automatik (Memuatkan/tinggal/memunggah) |
| Automatic Test Table | Automatic Rising and Homing, One Key to Complete |
| Membaca kekerasan | Skrin Sentuh |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, Hre, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Skala penukaran | Hv, HK, HRA, HRB, HRC, HRD, Hre, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, Hbw |
| Output data | Antara muka RS232 |
| Resolusi | 0.1HR |
| Masa tinggal | 0~99s |
| Maks. Ketinggian spesimen | 320mm |
| Tekak | 150mm |
| Bekalan kuasa | AC220V，50Hz |
| Laksanakan standard | ISO 6508，ASTM E-18，JIS Z2245，GB/T. 230.2 |
| Dimensi | 535×330×890mm，Dimensi pembungkusan: 820×460×1170mm |
| Berat badan | Berat bersih: 80kg，Berat kasar: 100kg |
Untuk maklumat lebih terperinci, sila hubungi kami: sales@victorytest.com
