Produsent av dynamiske og tretthetstestende maskiner
Electric/Hydraulic – Dynamic Test & Static Test
Lastekapasitet: 10KN, 20KN, 50kN, 100kN, 250kN, 500kN, 600kN, 1000kN, 1500KN, etc.
- Beskrivelse
- Forespørsel
Beskrivelse

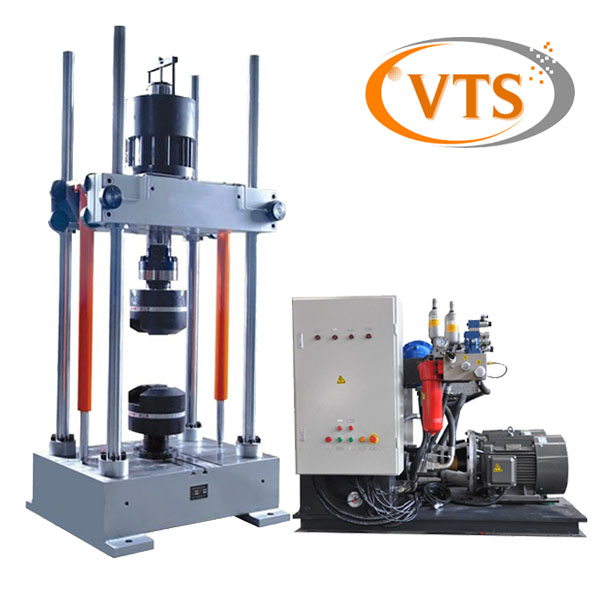

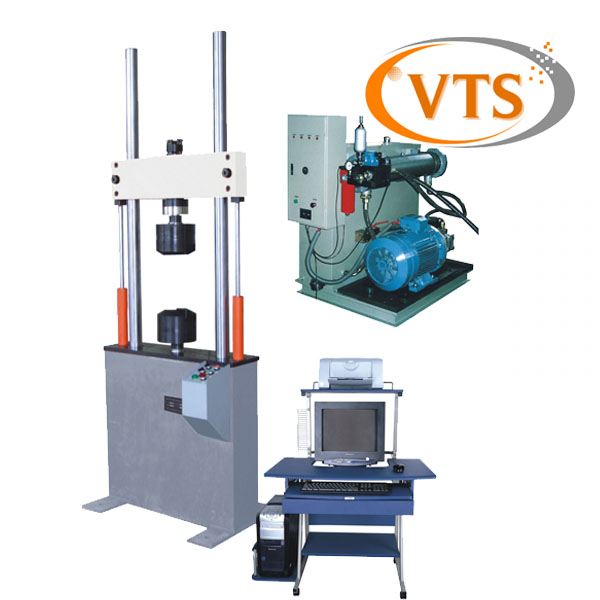

PWS-600 Electric-hydraulic Servo Dynamic& Static Universal Testing Machine
Produsent av dynamiske og tretthetstestende maskiner
(500kN, 600KN -kapasitet, 10Hz, 50Hz, 100Hz)
1. Hovedfunksjoner
PWS series electric-hydraulic servo dynamic & static universal testing machine is mainly used for static & dynamisk mekanikk ytelsestest av materialer og deler. Utstyrt med tilsvarende klemmer kan den brukes til å teste strekkmekanikk, kompresjon, lavsyklus og høysyklus, sprekkvekst og annen mekanikk ytelsestest. This machine is widely used in the field of aerospace, ships and war industry.
2. Produktfunksjoner
This machine adopts international advanced dynamic electric-hydraulic servo test system and uses unitization, BTW (Basic Test Ware) software and MPT (Multipurpose Test Ware) software. Design means of standardization and modularization, which improves stability and reliability of system. The key element and components of system are manufactured by today’s international advanced technology.
3. Technical specification
| Type | PWS- 50 | PWS- 100 | PWS- 250 | PWS- 500 | |
| Maximum testing force kN | static | 50 | 100 | 250 | 500 |
| dynamic | ±35 | ±70 | ±175 | ±350 | |
| Nøyaktighet av testkraft | Laste | ±0.5% or ±1% from 2%- 100% of F.S. | |||
| Forskyvning | ±0.5%/1 of F.S. | ||||
| Extension | ±0.5%/1 of F.S. | ||||
| Frequency range (Hz) | 0.01- 50/100 | 0.01- 10/35 | |||
| Amplitude (mm) | ± 75/100/125 | ||||
| Wave forms | Sine wave, Square wave, Triangular wave, etc. | ||||
| Framework forms | Double column with actuator at the bottom | Four column with actuator on the top | |||
| Column spacing (mm) | 600 | 600 | 720 | 850×500 | |
| Testplass (mm) | 600 | 600 | 800 | 1000 | |
| Specimen clamping | Hydraulic clamp | ||||
| Crosshead | Hydraulic lock and test space adjusted by hydraulic elevating actuator | ||||
For this Dynamic & Static Universal Testing Machine, it can customized made according to the customer’s requirement.
For mer info, please send us email: andy@victorytest.com
Mobil & WhatsApp number: +86-15305307234
