1000KN Mașină de testare a compresiei țevilor de beton
This YAW-1000P 1000KN Concrete Pipe Compression Servo Hydraulic Compression Testing Machine is mainly used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc. Este controlat pe computer, hydraulic servo type compression testing machine.
Standard de testare:
ASTM C497, AASHTO T280, EN1917, etc.
- Descriere
- Anchetă
Descriere

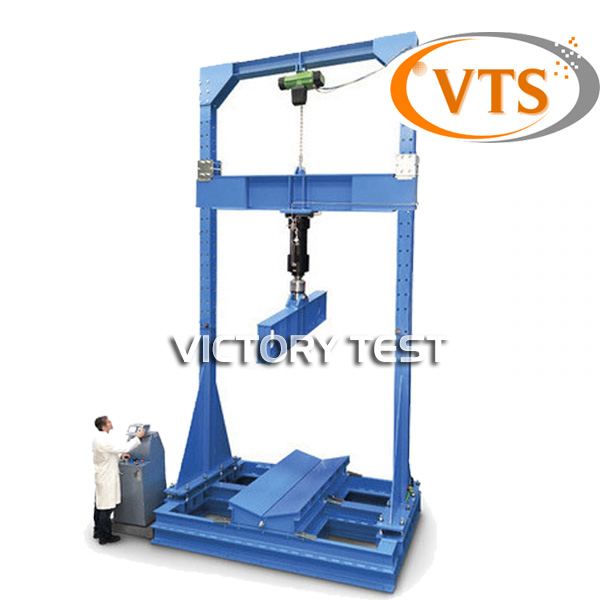

Concrete Pipe Compression Testing Machine
YAW-1000P Concrete Pipe Computerized Compression Testing Machine
(1000kN, electric hoist lift up, 400mm max. cursa pistonului,test space: 2600×2500mm, pipe length 3000mm)
Introducere:
(1). This YAW-1000P 1000KN Concrete Pipe Compression Servo Hydraulic Compression Testing Machine is mainly used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc. Este controlat pe computer, hydraulic servo type compression testing machine.
(2).Concrete Pipe Testing Machines are is used for compressive strength tests of concrete and steel pipes whose outside diameters are from 100 mm la 2600 mm. Concrete pipe test machines are manufacturer of capacity of between 400 kN la 1000 kN.
(3). The Concrete pipe testing machines are consisting of a frame and a hydraulic power pack. The frames are rigid 2 column constructions with superior axial and lateral stiffness and are precision aligned.
(4). Pipe Testing Machine frames have to be anchored to concrete base. All required parts to anchor the frame to the concrete base is supplied. The frames without carriying chassis is supplied with V shaped bottom bearers which can be anchored to concrete base.
Standard de testare:
ASTM C497, AASHTO T280, EN1917, etc.
Principii parametri tehnici
| Model de parametri | YAW-1000P (1000KN) |
| Capacitate de încărcare | 20kN – 1000kN |
| Test machine class | 0.5 clasă |
| Test force range | 2%- 100% FS |
| Test force indicate relative error | Better than ±1% |
| Displacement resolution (mm) | 0.01 |
| Displacement measurement range (mm) | 0-400 |
| Piston max. moving speed (mm/min) | 0.5 – 70 |
| Oil cylinder stroke (mm) | 400 |
| Distance between upper compression platen and ground(mm) | 0 – 2500 |
| Distance between two columns (mm) | 2600 |
| Upper compression plate size/material | Length 3000mm, width 350mm steel, with rubber |
| Alimentare electrică | 3-fază, 220V±10%, 60Hz |
| Dimensiunea dimensiunii l*w*h (mm) | 3300×3000×5520 |
