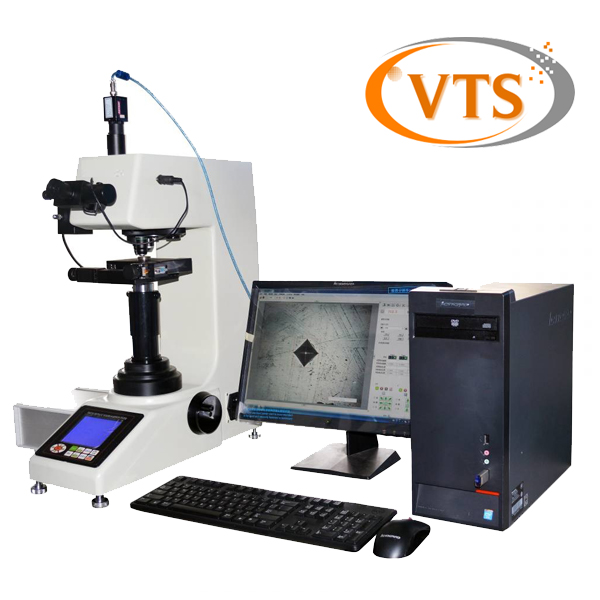

Tester de duritate Vickers complet automat MHV-5Z/10Z/30Z/50Z/V3.0
Computer control Vickers Hardness Tester
Model: MHV-5Z/V3.0, MHV-10Z/V3.0, MHV-30Z/V3.0, MHV-50Z/V3.0
- Descriere
- Anchetă
Descriere
Tester de duritate Vickers complet automat MHV-5Z/10Z/30Z/50Z/V3.0
Tester de duritate Vickers
(5kgf, 10kgf, 30kgf, 50kgf, Automat, Computer Control)
Funcții principale:
MHV-5Z/10Z/30Z/50Z/V3.0 Automatic Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
Machine Parameters:
| Model | MHV-5Z/V3.0 | MHV-10Z/V3.0 | MHV-30Z/V3.0 | MHV-50Z/V3.0 | |
| Forța de testare | GF | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf | 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf | 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf |
| N | 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N | 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N | 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N | 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N | |
| Gama de teste | 1HV ~ 2967HV | ||||
| Modul de testare | HV/HK | ||||
| Metoda de încărcare | Automat (Încărcare/Dwell/Descărcare) | ||||
| Schimbarea între obiectiv și indenter | Schimbare automată | ||||
| Scara de conversie | Hk, Hra, HRB, HRC, HRD, Hre, HRF, Hrg, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB | ||||
| Ieșire de date | Built-in Printer WORD or EXCEL Report with Curve Chart | ||||
| Citirea durității | Indentation Displaying and Automatic Measuring on PC | ||||
| Obiectiv | 20×, 40× | 10×, 40× | 10×, 20× | 10×, 20× | |
| Ocular | 10× | ||||
| Mărire totală | 200× , 400× | 100× , 400× | 100× , 200× | 100×, 200× | |
| Rezoluţie | 0.125μm, 0.0625μm | 0.25μm , 0.0625μm | 0.25μm , 0.125μm | 0.25μm, 0.125μm | |
| Timp de locuit | 0~ 60S | ||||
| Sursă de lumină | Lampa cu halogen | ||||
| Tabelul de testare X-Y motorizat | Dimensiune: 100× 100mm; Voiaj: 50× 50mm; Rezoluţie: 0.002mm | ||||
| Max. Înălțimea specimenului | 170mm | ||||
| Gât | 130mm | ||||
| Alimentare electrică | AC220V, 50Hz | ||||
| Executați standardul | ISO 6507, ASTM E92, El Z2244, GB/T. 4340.2 | ||||
| Dimensiune | 530×280×630mm, Dimensiune de ambalare: 620×450×740mm | ||||
| Greutate | Greutate netă: 35kg, Greutate brută: 47kg | ||||
Tester de duritate Vickers complet automat MHV-5Z/10Z/30Z/50Z/V3.0
