3000Máy kiểm tra toàn cầu thủy lực KN kiểm tra độ bền kéo

Sự miêu tả

3000Máy kiểm tra toàn cầu thủy lực KN kiểm tra độ bền kéo

(3000kN, 300tấn, 6 cột, clip-on extensometer, tensile elongation test)

1. Giới thiệu:

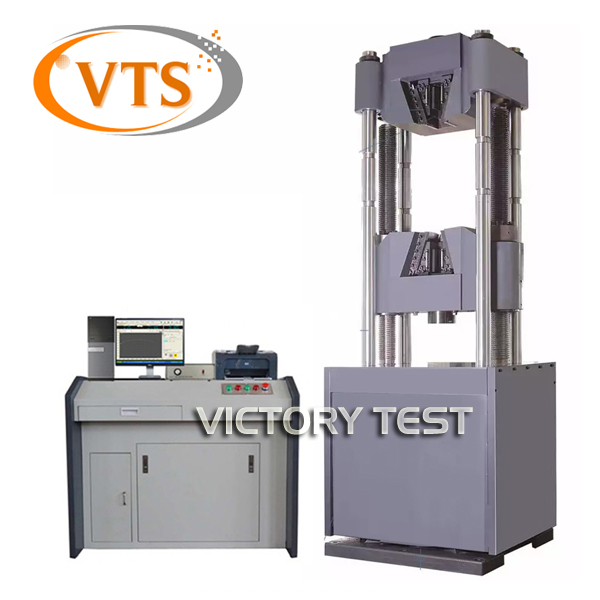

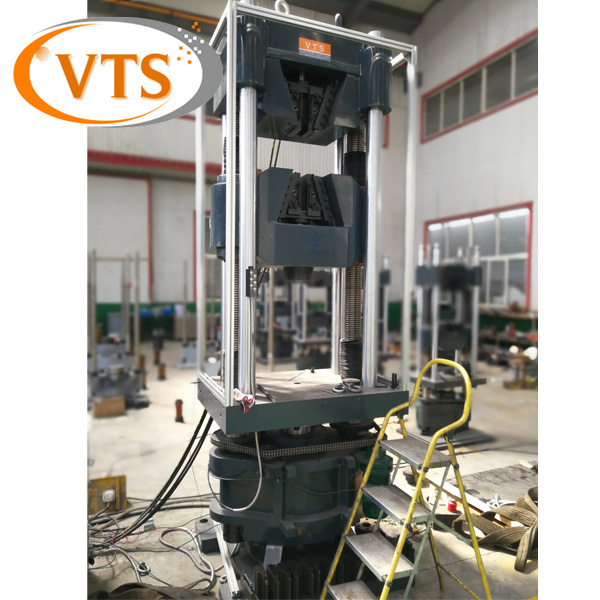

The 3000kN computer servo hydraulic universal testing machine is used for tensile strength and elongation tests of metal materials and non-metal materials. It can be used for tensile strength test of steel bars, concrete bars, concrete cubes, concrete cylinders, vân vân. Điều khiển máy tính, 6 cột, high rigidity. Double test space is adopted, the upper space is used for tensile test, and the lower space is used for compression and bending test. We are manufacturers of UTMs of various load capacities.

2. Main specifications:

2.1 tối đa. Test force: 3000 kN;

2.2. Measurement accuracy range: 1%-100%;

2.3 Test force accuracy: ±0.5% of reading

2.4. Stress rate control range: 1-60MPa/S;

2.5. Test stress rate adjustment range: 1N/mm 2 S -1 -60N/mm 2 S -1;

2.6. Adjust range of test strain rate:0.00025/S-0.0025/S;

2.7. Precision of deformation measurement: ±0,5%;

2.8. Precision of displacement measurement: ±1%;

2.9. Không gian kéo: 800mm;

2.10. Không gian nén: 700mm;

2.11. Clamping diameter of rebar: φ15-φ80mm;

2.12. Clamping width of flat specimen: 120mm;

2.13. Clamping thickness of flat specimen: 0-70mm;

2.14. Diameter of upper and lower plate: 250×250mm;

2.15. Piston stroke: 250mm;

2.16. Span of bending roller: 50-400mm; width of roller: 200mm; diameter of roller: φ50mm

2.17. Deformation measurement: extensometer gauge length: 100mm; sự mở rộng: 25mm;

2.18. Nguồn cấp: 3-phase 4-wire, 380V., 50 Hz

để biết thêm thông tin, xin vui lòng liên hệ với chúng tôi: andy@victorytest.com

Người liên hệ: Andy Li – VTS

di động & Whatsapp: +86-15305307234
