300Ton – 2000Ton Anchor Chains Tensile Test Bed-VTS

300Ton – 2000Ton Anchor Chains Tensile Test Bed-VTS

100Ton 200Ton 300Ton 1000kn 2000kn 3000kn Steel Wire rope anchor chain cable Horizontal Tensile Test bed Tensile Test Machine

Vật liệu thử nghiệm: anchor chains, xiềng xích, dầm rải, sợi dây sợi, wire rope, xích, v.v.

Sự miêu tả



300Ton – 3000Ton Anchor Chains Horizontal Tensile Test Bed

(Khả năng chịu tải: 300Ton, 500Ton, 1000Ton, 1500Ton, 2000Ton 3000Ton,vân vân.)

Giới thiệu:

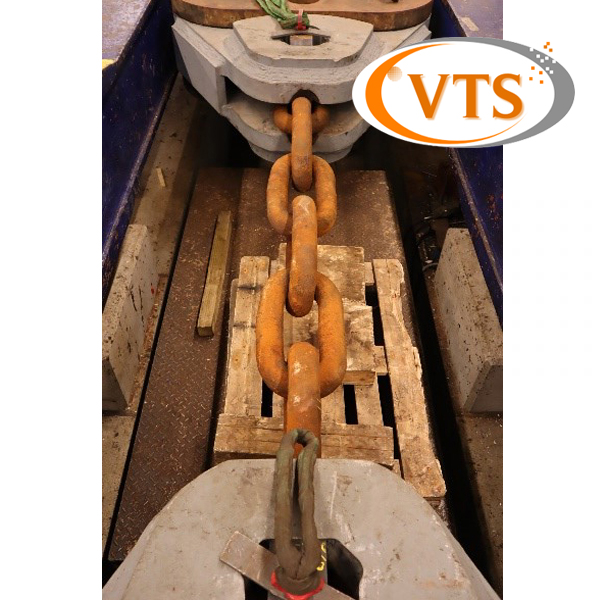

Anchor Chains Horizontal Tensile Test Bed is mainly used for tensile strength test of long materials, like Wire Rope, dầm rải, lifting beam, sợi dây sợi, synthetic ropes, steel wire rope sling, cable, nylon rope, xích, sling, v.v. It adopts precision hydraulic power pack to load, Tế bào tải độ chính xác cao để đo lực kiểm tra, bộ mã hóa quang điện để đo chuyển vị, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer’s requirement.

Anchor Chains Giường thử độ bền kéo ngang are: robust design, ease of use, computer control, long cylinder stroke, electronic force and elongation measurement and the use of high-quality single components. With automatic data acquisition, storage and evaluation.

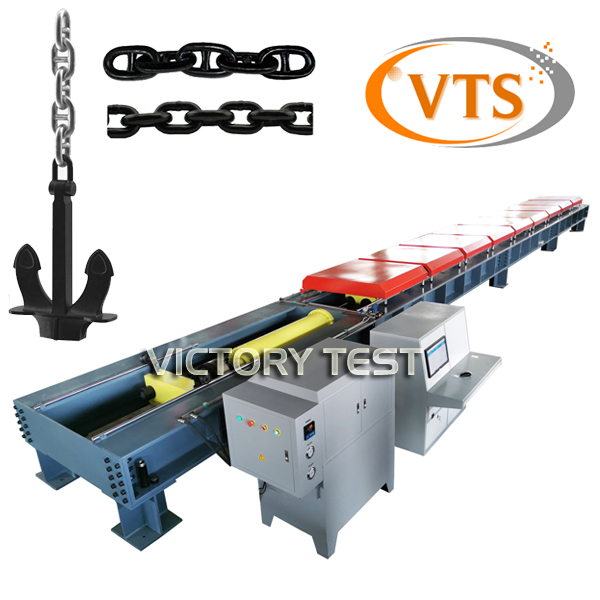

Anchor Chains Horizontal Tensile Test Bed
Load Capacity: 100Ton, 200Ton, 300Ton, other capacity is also available.

Tiêu chuẩn:

The machine is calibrated according to ASTM E4 and ISO75001.



Thông số kỹ thuật chính:

Người mẫuWLW-1000WLW-2000WLW-3000WLW-5000WLW-15000
Khả năng chịu tải100Ton200Ton300Ton500Ton1500Ton
Sự chính xác±1%
Effective testing space12 M12 M20 M20 M25 M
Tối đa. hành trình piston1000 mm1500mm1500mm2000mm2000mm
Nguồn cấp3-giai đoạn, 380V ± 10%, 50Hz (customized made)

Remark: the testing space and piston stroke can be made according to your requirement.

Đối với công suất tải khác, nó cũng có thể được thực hiện theo đơn đặt hàng của khách hàng.
