Máy đo áp suất thủy tĩnh VTS cho đường ống ISO1167 ASTM D 1598

Sự miêu tả

Máy đo áp suất thủy tĩnh VTS cho đường ống ISO1167 ASTM D 1598 ASTM D 1599

(10MPa, PVC, Thể dục, etc pipe, 3 stations or more, 15oC- 95oC, touch PC control)

1.Giới thiệu

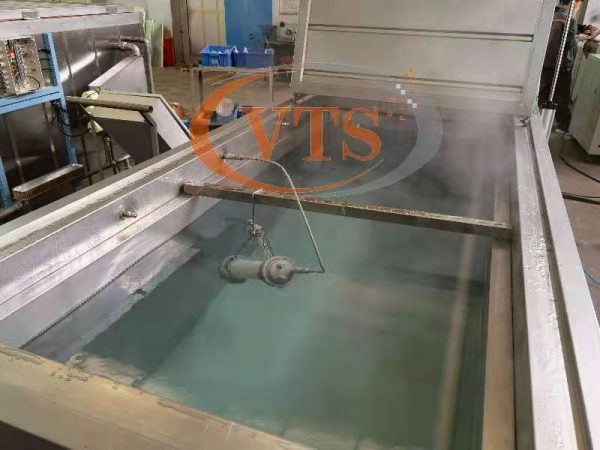

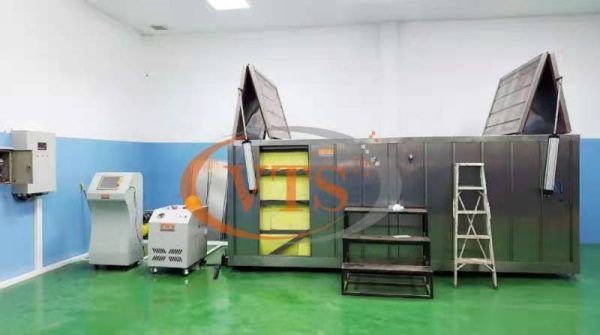

XGNB Series Hydrostatic Pressure and Burst Testing Machine is used to determine the long-term hydrostatic strength and instant blasting of HDPE, PVC, Thể dục, PPR, ABS and other plastic pipes. It conforms to the test standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

This testing machine adopts advanced control algorithm, loading pressure smooth, hold pressure stable, swelling rate high, which can ensure 100% success of test.

2. Thông số kỹ thuật chính

2.1 Pressure range: 0.2MPa -10MPa, other pressure unit is available like Bar, PSI

2.2. Resolution of pressure testing: 0.001MPa, 1PSI, 0.01Bar

2.3. Accuracy of pressure control: -1% ~ +2%

2.4. Testing pipe: φ16 – φ1600mm

2.5. Test station: 3 stations (cung cấp tiêu chuẩn) or even more

2.6. Time range: 0 – 10000h, positive timing or countdown, minimum setting time gradient 1 min.

2.7. Power supply of host machine: 1- giai đoạn, 220V ± 10%, 50Hz, 0.5kW

2.8 Power supply of pressure station: 3-giai đoạn, 380V ± 10%, 50Hz, 5kW
