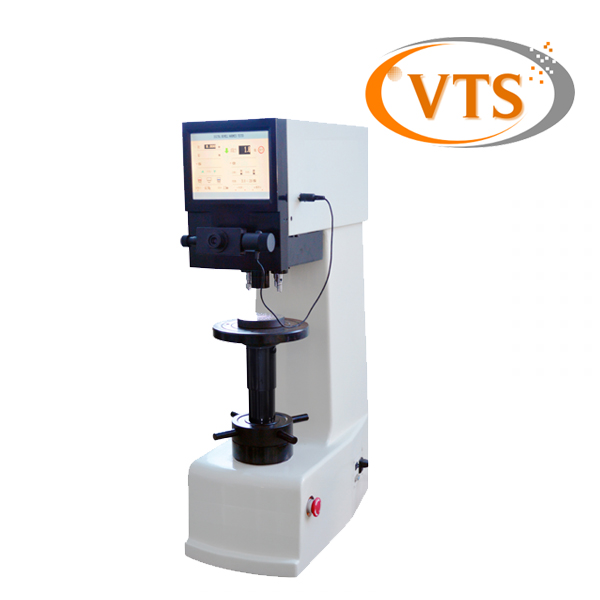

XHB-3000Z II Three Indenters Digital Brinell Hardness Tester
Touch Screen Three Indenters Brinell Hardness Tester
- Paglalarawan
- Pagtatanong
Paglalarawan
XHB-3000Z II Three Indenters Digital Brinell Hardness Tester
(Touch Screen, three indenters)
Saklaw ng aplikasyon:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Teknikal na Pagtutukoy:
| Modelo | XHB-3000Z II | |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Saklaw ng Pagsusulit | 3.18～653HBW | |
| Paraan ng Pag load | Awtomatikong (Loading / Tirahan / Unloading) | |
| Hardness Reading | Touch Screen Display | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS | |
| Data Output | Built in na Printer, RS232 Interface | |
| Paglipat sa pagitan ng Layunin at Indenter | Automatic Recognition and Shifting (Three Indenters, Two Objectives) | |
| Layunin | 1×, 2× | |
| Eyepiece | 20× | |
| Kabuuang Pagpapalaki | 20×, 40× | |
| Resolusyon | 1.25M, 0.625M | |
| Dwell Time | 0~ 60s | |
| Max. Taas ng Specimen | 260mm | |
| Lalamunan ng lalamunan | 150mm | |
| Power Supply | AC220V, 50Hz | |
| Ipatupad ang Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
| Dimensyon | 535×260×890mm, Sukat ng Pag iimpake: 820×460×1170mm | |
| Timbang | Net Timbang: 150kg, Gross Timbang: 180kg | |
Para sa mas detalyadong info, Mangyaring huwag mag atubiling makipag ugnay sa amin: sales@victorytest.com
