XHB-3000Z Three Indenters Digital Brinell Hardness Tester
1. Brinell hardness tester
2. Three indenters
3. Digital display
- Paglalarawan
- Pagtatanong
Paglalarawan
Three Indenters Digital Brinell Hardness Tester

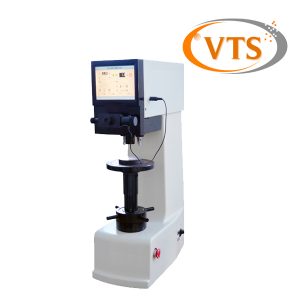

XHB-3000Z Three Indenters Digital Brinell Hardness Tester
Pangunahing Function:
XHB-3000Z Three indenters digital Brinell hardness tester adopts precise structure design and the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact. The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high. The instrument has 10 steps test force and 13 kinds of Brinell testing scale for arbitrary selection; With three indenters and two objectives, all can be used for measurement, automatic recognition and shifting between the objectives and the indenter; Pre-set the dwell time of test force and regulate the luminosity of light source; Automatically display the testing indentation length, hardness value and testing numbers; Conversion scales of different kinds of hardness; Test results can be saved for checking or be printed out by the built-in printer, at may RS232 interface para sa pagkonekta sa computer. According to the client’s requirement, it can be equipped with video measuring device and CCD image automatic measuring system.
Saklaw ng aplikasyon:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Teknikal na Pagtutukoy:
| Modelo | XHB-3000Z | |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Saklaw ng Pagsusulit | 3.18 ~653HBW | |
| Paraan ng Pag load | Awtomatikong (Loading / Tirahan / Unloading) | |
| Hardness Reading | LCD Display | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS | |
| Data Output | Built in na Printer, RS232 Interface | |
| Paglipat sa pagitan ng Layunin at Indenter | Automatic Recognition and Shifting (Three Indenters, Two Objectives) | |
| Layunin | 1×, 2× | |
| Piraso ng mata | 20× | |
| Kabuuang Pagpapalaki | 20×, 40× | |
| Resolusyon | 1.25M, 0.625M | |
| Dwell Time | 0~ 60s | |
| Max. Taas ng Specimen | 260mm | |
| Lalamunan ng lalamunan | 150mm | |
| Power Supply | AC220V, 50Hz | |
| Ipatupad ang Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
| Dimensyon | 535×260×890mm, Sukat ng Pag iimpake: 820×460×1170mm | |
| Timbang | Net Timbang: 150kg, Gross Timbang: 180kg | |
