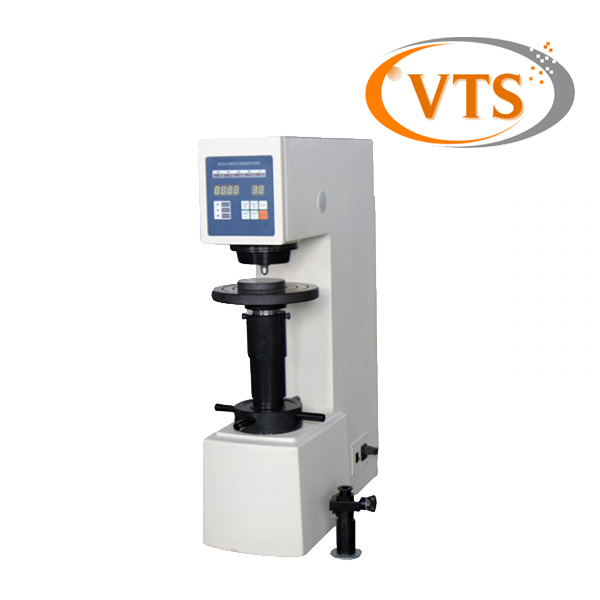

DHB-3000 Electronic Brinell Hardness Tester
DHB-3000 Electronic Brinell Hardness Tester is used for brinell hardness test of cast iron, steel product, non-ferrous metals and soft alloys.
- 説明
- 問い合わせ
説明
DHB-3000 Elecctronic Brinell Hardness Tester
(Electronic type, Economic Type)
アプリケーション:
DHB-3000 Electronic Brinell Hardness Tester adopts is an affordable electronic hardness tester with high accuracy, reliability and durability. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.
技術仕様
| テストフォース | 612.9N (62.5kgf) 4900N (500kgf) 980N (100kgf) 7355N (750kgf) 1226N (125kgf) 9800N (1000kgf) 1839N (187.5kgf) 14700N (1500kgf) 2452N (250kgf) 29400N (3000kgf) |
| 試験範囲 | 8-650 HBW |
| Hardness Display | Check the Table of Brinell Hardness Scale |
| 顕微鏡の倍率 | 20× Mechanic Microscope |
| 試験片の最大高さ | 220mm |
| 楽器のど | 135mm |
| 電源 | AC220V/50Hz |
| 実行基準 | GB/T230.2, JIG112, EN-ISO6508, ASTM E-18 |
| 全体の寸法 | 753×542 ×205mm |
| 正味重量 | 130kg |
