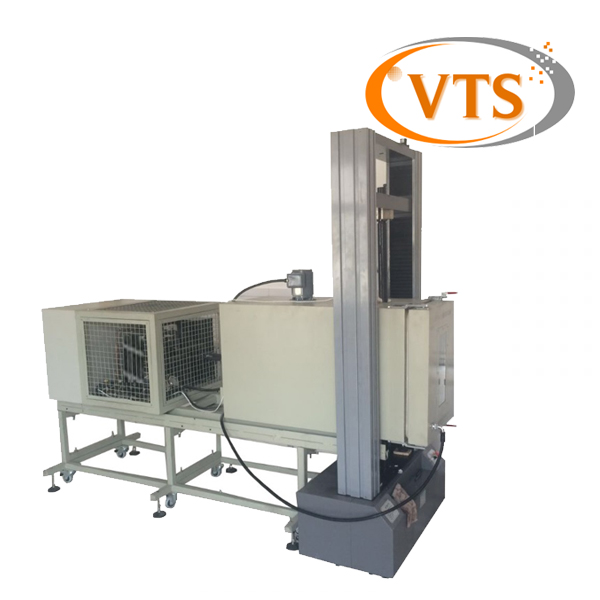

50KN High and Low Temperature Tensile Testing Machine Manufacture
(load capacity 50kN, 100kN)
1. Introduction
This environmental test chamber is used for low and high temperature testing of metal materials, non-metal materials, composite materials, etc. The temperature range can be customized according to the customer’s requirements, such as -20℃～+150℃. Through the use of relative test accessories, it can perform tensile, compressive, and bending tests.
- System Composition
2. System composed
This stem is compsed of chamber body, temperature control and measure display system, heating system, cooling system, temperature measure component, wind cycling system, adjustable mobile trolley, etc
3. Specifications of Environmental Test Chamber
Temperature range: -20℃~ 150℃
Temperature measuring sensitivity: 0.1℃
Temperature measuring accuracy: ±1℃
Chamber inside work room size: 400mm×500mm×500mm (W×D×H)
Chamber outsize size: 600mm×700mm×600mm (W×D×H)
Insulation material thickness: >80mm
4. Specifications of Testing Machine
| Model | WDW-50 |
| Host Machine Structure | double space |
| Max Load Capacity (kN) | 50 |
| Class of Machine | 0.5 |
| Load Range | 0.4%-100% FS |
| Load Accuracy | Within ±0.5% of indicating value |
| Load Resolution | 1/300000 |
| Range of Deformation | 4%-100%FS |
| Resolution of Deformation (mm) | 0.001 |
| Accuracy of Displacement | Within ±0.5% of indicating value |
| Resolution of Displacement (mm) | 0.01 |
| Range of Testing Speed (mm/min) | 0.01- 500 |
| Max Tensile Space (mm) | 1000 |
| Max Compression Space (mm) | 1100 |
| Clearance between columns (mm) | 600 |
| Working Environment | Room temperature 10℃~30℃, relative humidity≤80% |
| Total Power Supply | 1-phase, 220V±10%, 50Hz |
| Host Machine Dimension (mm) | 900×520×2450 |
| Net Weight (kg) | 800 |
50KN High and Low Temperature Tensile Testing Machine Manufacture
It is customizde made testing machine, please feel free to contact us.
