GW-50B Steel Rebar Bending Reverse bending Testing machine
Steel ReBar Bending Reverse bending Testing machine
Rebar Bend Re-bend Test for 6-40mm, 6-50mm rebar
Testing standard: SS 560, AS/NZS 4671, EN 10080, ISO 15630-1,2,3, ASTM A615/A615M ,BS EN 4449,BS EN 10025, ISO 6935-2, ASTM A706, NFA 35-016-1, JIS G3112 etc.
- Description
- Inquiry
Description

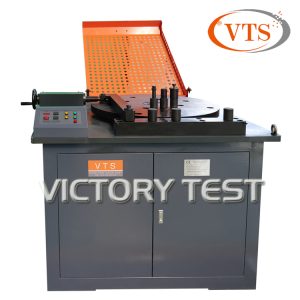

GW-50B Steel Rebar Bending Reverse bending Testing machine
1. Application & Features:
The steel bar bend testing machine can be used to do bend and reverse bend test on plane. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company. It can be used to bend the steel bar on-site so that test and construct can be done in one machine.
The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating, especially reasonable design of limit position and easily damaged parts, so it has a long using time.
2. Standard
It can conform to testing standard such as SS 560, AS/NZS 4671, EN 10080, ISO 15630-1,2,3, ASTM A615/A615M ,BS EN 4449,BS EN 10025, ISO 6935-2, ASTM A706, NFA 35-016-1, JIS G3112 etc.
3. Main Technical Specifications:
| Model | GW-40B | GW-50B |
| Range of bend steel bar’s diameter | φ6-φ40mm | φ6-φ50mm |
| Angle of steel bar bend test | 0°-180°at will | 0°-180°at will |
| Angle of steel bar reverse bend test | 0°-90°at will
| 0°-90°at will
|
| Rotating speed of working plate | ≤ 3.7 r/min | ≤ 3.0 r/min |
| Distance of roller center | 165mm | 230mm |
| Diameter of working plate | φ580mm
| φ860mm |
| Motor power | 1.5KW, 3-phase, 380V, 50Hz/60Hz (Or specified by users) | 3KW, 3-phase, 380V, 50Hz/60Hz (Or specified by users) |
| Host size | L*W*H=1050×750×1200mm
| L*W*H=1460×1200×1200mm |
| Weight | 750kg
| 1700kg |
GW-50B Steel Rebar Bending Reverse bending Testing machine/tester
