Horizontal Proof Test Bed 100Ton-3000Ton
This Test Bed/test beds/test bench/testing machine is mainly used for tensile strength test of anchor chains, mooring anchor chains, stud link chain, shackles, spreader beam, lifting beam, fiber ropes, steel wire rope sling, cable, nylon rope, chain, webbing sling, wood etc.
- Description
- Inquiry
Description

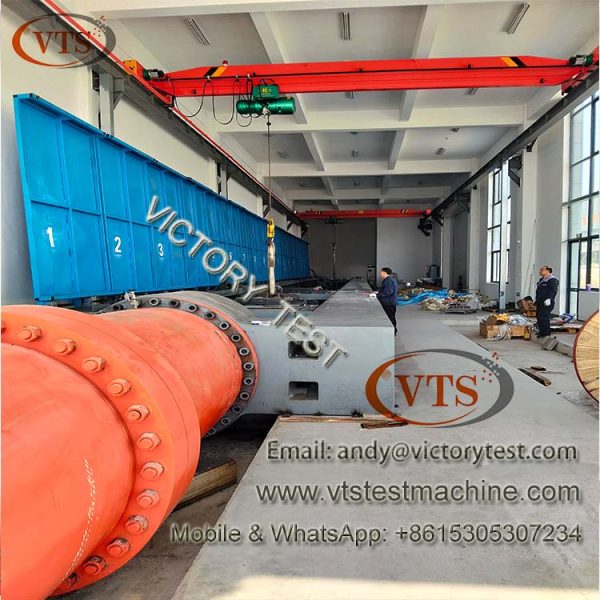

Horizontal Proof Test Bed 100Ton-3000Ton
Horizontal Proof Test Bed 100Ton – 3000Ton/Horizontal Tensile Test Bed
(Load capacity: 100Ton, 200Ton, 300Ton, 500Ton, 800Ton, 1000Ton, 1500Ton, 2000Ton 3000Ton,etc.)
Introduction:
Horizontal Proof Test Bed 100Ton-3000Ton/Horizontal Tensile Test Bed is mainly used for tensile strength test of long materials, like Wire Rope, spreader beam, lifting beam, fiber ropes, synthetic ropes, steel wire rope sling, cable, nylon rope, chain, webbing sling, etc. It adopts precision hydraulic power pack to load, high precision load cell to measure testing force, photoelectric encoder to measure displacement, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer’s requirement.
Horizontal Proof Test Bed/Horizontal Tensile Test Bed are: robust design, ease of use, computer control, long cylinder stroke, electronic force and elongation measurement and the use of high-quality single components. With automatic data acquisition, storage and evaluation.
Horizontal Proof Test Bed/Horizontal Tensile Test Bed
Load Capacity: 50Ton, 100Ton, 200Ton, 300Ton, 500Ton, 800Ton, 1000Ton, 1500Ton, 2000Ton, 3000Ton, other capacity is also available.
Standards:
The machine is calibrated according to ASTM E4 and ISO75001.
Main technical parameters:
| Model | WLW-1000 | WLW-2000 | WLW-3000 | WLW-5000 | WLW-15000 |
| Load capacity | 100Ton | 200Ton | 300Ton | 500Ton | 1500Ton |
| Accuracy | ±1% | ||||
| Effective testing space | 12 M | 12 M | 20 M | 20 M | 25 M |
| Max. piston stroke | 1000 mm | 1500mm | 1500mm | 2000mm | 2000mm |
| Power supply | 3-phase, 380V±10%, 50Hz (customized made) | ||||
Remark: The testing space and piston stroke can be made according to your requirement.
For the other load capacity, it also can be made according to the customer’s order.
No matter when and where, we will provide you with high-quality after-sales service and are committed to providing prompt and professional solutions so that you can enjoy worry-free after-sales service.
