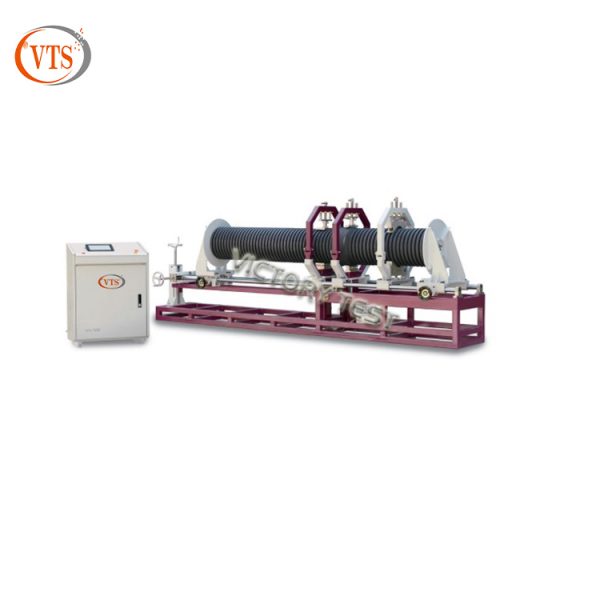

Plastics Piping Systems Joint Tightness Tester
Plastics piping systems joint tightness tester is used to determine the leak tightness of elastomeric sealing ring type of joints for buried thermoplastic non-pressure piping systems.
- Description
- Inquiry
Description
Plastics Piping Systems Joint Tightness Tester
It is used to determine the leak tightness of elastomeric sealing ring type of joints for buried thermoplastic non-pressure piping systems.
Testing standard:
DIN EN 1277, IS0 13844 and the equivalent.
Plastic Pipes System Joints Leak Tightness Tester (Negative Pressure Leakage)
Principle:
Plastics piping systems joint tightness tester/Pressure Leak Testing Machines test piece consisting of a plastic pipe mounted into a socket is exposed within a specified temperature range to two specified negative internal pressures for a specified test period, while the pipe is being subjected to an angular deflection in the socket and to deformation. During the test, the test piece is monitored for signs of leakage.
Parameters:
- Industrial color LCD display is convenient to input and check test information, including test parameters, test results and test curves ,etc.
- Test data can easily be exported to user’s PC via USB stick for further processing and report generation.
- Hydraulic type pipe deflection device at radial direction, high precision digital gauge display as well as the self-aligning centering function ensure operation easier.
- Different supporting-blocks are introduced for different pipe fittings.
- Angular deflection at four directions can be collected.

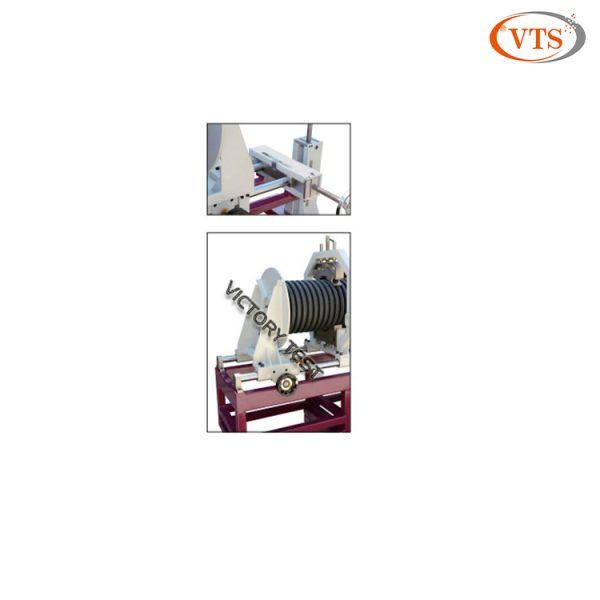

- Unique design for sample clamping system makes the sample installation more convenient.
Plastics Piping Systems Joint Tightness Tester
Parameters:
| Teslt station | 1 |
| Pipe diameter(DN) | (63~500)mm |
| Pressure range | 0.001MPa |
| Pressure display accuracy | -O.01业0.002,-0.03土0.0015.-0.08士0.002 |
| Pressure control accuracy (MPa) | 220(1-15%）VAC~220（1+10%) VAC，50Hz，1.OkW |
| Max.angla of deflection | 3° |
| Main frame Overall dimensions(mm) | 3600×600×1300 |
| Pressure control cabinet dimensions (mm) | 800×400×1100 |
| Power supply | 220(1-15%）VAC~220（1+10%) VAC，50Hz，1.OkW |
ISO 13844 Piping System Joints Leak Tightness Tester/Pressure Leak Testing Machines/Plastic Pipes System Joints Leak Tightness Tester (Negative Pressure Leakage)
