Description

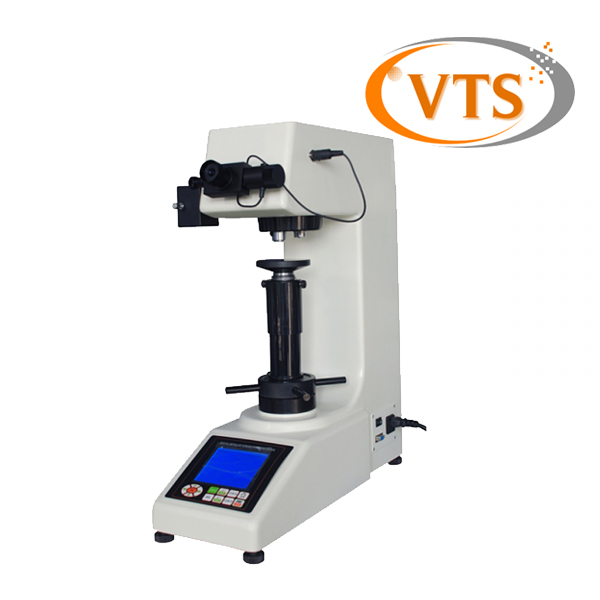

Practical Micro Vicker Hardness Tester Series MHV-50Z
Vicker Hardness Tester
(1kgf -50kgf, digital display)
Main Function:
MHV-50Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It adopts the high resolution color touch screen which is visual and clear, easy to operate, display backlight adjustable with energy-saving mode. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer. It can be equipped with LCD video measuring device and CCD image automatic measuring system.
Application range:
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Specification:
| Model | MHV-50Z | |
| Test Force | kgf | 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf |
| N | 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N | |
| Test Range | 1HV~2967HV | |
| Loading Method | Automatic (Loading/Dwell/Unloading) | |
| Shifting between Objective and Indenter | Automatic Shifting | |
| Data Output | Built-in Printer, RS232 Interface | |
| Conversion Scale | HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB | |
| Objective | 10× , 20× | |
| Eyepiece | 10× | |
| Total Magnification | 100× , 200× | |
| Resolution | 0.25μm, 0.125μm | |
| Dwell Time | 0~60s | |
| Light Source | Halogen Lamp | |
| X-Y Test Table | Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm | |
| Max. Height of Specimen | 170mm | |
| Throat | 130mm | |
| Power Supply | AC220V, 50Hz | |
| Execute Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | |
| Dimension | 530×280×630mm, Packing Dimension: 620×450×740mm | |
| Weight | Net Weight: 35kg, Gross Weight: 47kg | |
