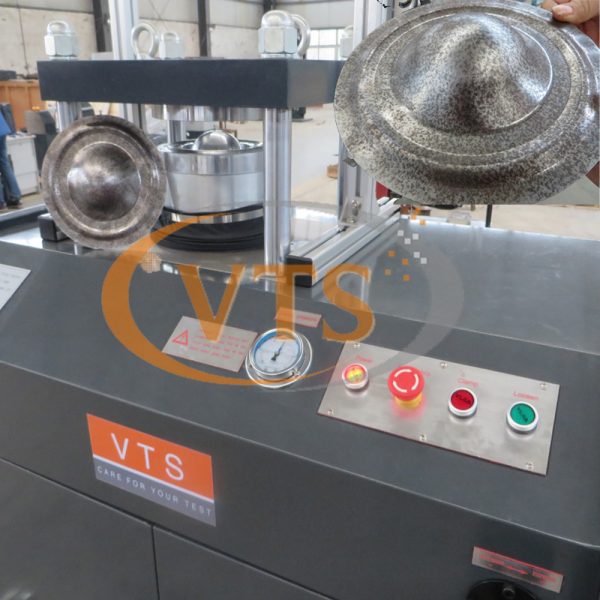

Sheet Metal Forming limit curve FLC Testing Machine ISO 12004
1. Aplicativo & Características:
This computerized sheet metal testing machine is the most advanced integrated testing machine that is specially used to evaluate and identify metal forming and punching performance for metal sheet materials. It can measure a variety of metal mechanical properties and formability index. It is produced according to ISO 20482, ISO 12004, ISO 16630 etc testing standard and so on. So it has become the most powerful and advanced test tool to control metal plate rolling quality and select suitable punching plate.
2. Stpadrões:
ISO 12004 Materiais metálicos – Sheet and strip -Determination of forming-limit curves -Part 2: the laboratory Determination of forming-limit curves in the laboratory

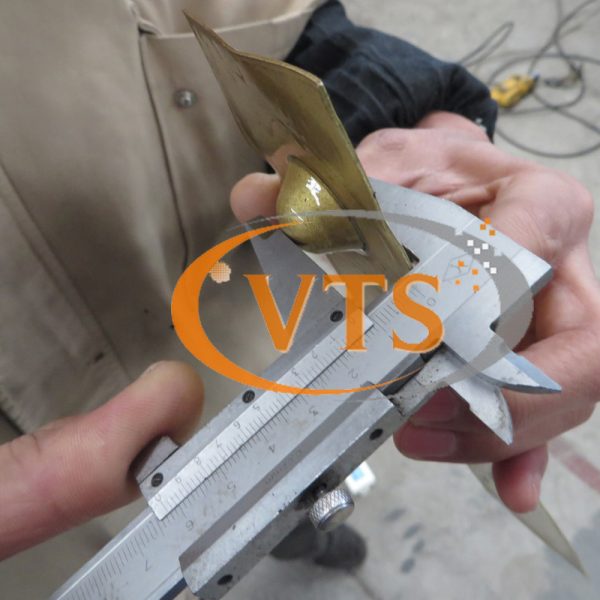

ISO20482: 2003 Materiais metálicos - Folha e tira - Teste de Cupping Erichsen
ISO 16630 Metallic materials — Method of hole expanding test
3. Principais Especificações Técnicas:
| Modelo | GBW-1000 |
| Specimens thickness | 0.2-6milímetros |
| Specimens size | 300x300mm |
| Max Drawing force | 1,000kN (100Tons) |
| Max Blank holder force | 1,000kN (100Tons) |
| Accuracy of drawing force | ±1％ |
| Drawing punch stroke | 200milímetros |
| Drawing punch diameter | 100milímetros |
| Accuracy of Drawing punch stroke | ±1％ |
| Drawing speed(Loading speed) | 60mm/min |
| Unloading speed(Return Speed) | 100mm/min |
| Dimensions of Host machine (L*W*H) | 1200×8100 ×1270mm (Not including frame for 3D Camera) |
| Dimensions of Hydraulic pump station (L*W*H) | 1200×8100 ×1200mm
|
| Net weight of host machine | About 1400kg |
| Net weight of Hydraulic pump station | About 800kg |
| Main Oil Pump Motor power | 5.5kW |
| Vice Oil Pump Motor power | 1.1kW |
| Fonte de energia | 3-Estágio, 380V, 50Hz |
Observação: For other load capacity, we also can make it.
FLC Test Curve:
