XHVT-1000Z Intelligent Digital Micro Vickers Hardness Tester
- Paglalarawan
- Pagtatanong
Paglalarawan

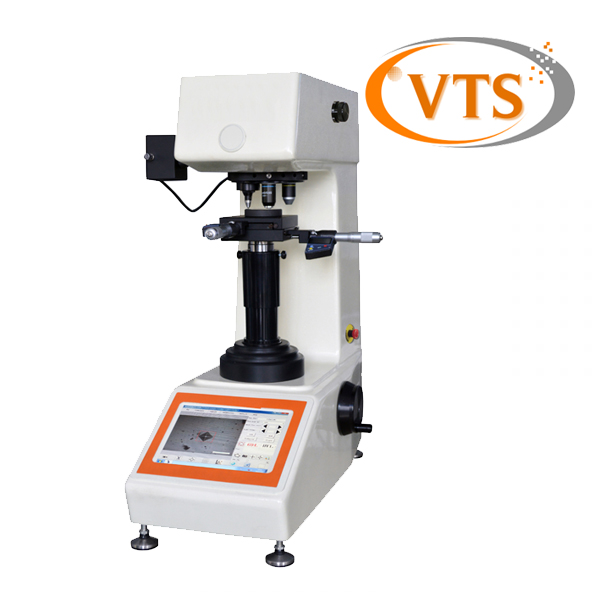

XHVT-1000Z Intelligent Digital Micro Vickers Hardness Tester
Pangunahing Function:
This instrument is a new generation of Micro Vickers hardness tester. It adopts the integrated design of hardness tester and panel computer, all the testing parameters can be selected on the panel computer. With touch screen, it operates quickly and conveniently and displays clearly and intuitively. With CCD image acquisition system, it can show dynamic indentation image, lock the image and automatically get the Vickers hardness value with high precision and stability, and avoid the human errors. The hardness tester with complete functions reaches the advanced level.
Saklaw ng aplikasyon:
Angkop para sa ferrous metal, mga metal na hindi ferrous, IC manipis na mga seksyon, mga patong na patong, mga ply-metal; salamin, Keramika, agate, mga mahalagang bato, manipis na mga seksyon ng plastic atbp.; hardness testing tulad ng sa lalim at ang trapezium ng carbonized layers at quench hardened layers.
Teknikal na Pagtutukoy:
| Modelo | XHVT-1000Z | |
| Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
| N | 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N | |
| Saklaw ng Pagsusulit | 1HV ~ 2967HV | |
| Test Mode | HV/HK | |
| Paraan ng Pag load | Awtomatikong (Loading / Tirahan / Unloading) | |
| Paglipat sa pagitan ng Layunin at Indenter | Awtomatikong Paglipat | |
| Computer | CPU: Intel I3，Memory: 2G，SSD: 32G | |
| CCD Pixel | 1.30 Million | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW | |
| Hardness Reading | Indentation Displaying and Automatic Measuring on Touch Screen | |
| Data Output | WORD or EXCEL Report with Curve Chart | |
| Layunin | 10× (Observe)， 40× (Measure) | |
| Kabuuang Pagpapalaki | 100× , 400× | |
| Resolusyon | 0.0625M | |
| Dwell Time | 0~ 60s | |
| Pinagmulan ng Liwanag | Lampara ng Halogen | |
| Motorized X-Y Test Table | Sukat: 100×100mm; Paglalakbay: 25×25mm; Resolusyon: 0.01mm | |
| Max. Taas ng Specimen | 185mm | |
| Lalamunan ng lalamunan | 130mm | |
| Power Supply | AC220V, 50Hz | |
| Ipatupad ang Standard | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 | |
| Dimensyon | 560×335×675mm，Sukat ng Pag iimpake: 650×380×960mm | |
| Timbang | Net Timbang: 48kg, Gross Timbang: 62kg | |
