ASTM F606 Screws Bolts and Studs Tensile Test Machine- VTS
Fastener Bolt Nut Screw Tensile Testing machine
Testing Standard: Testing of Bolts, Screws and Studs to DIN EN ISO 898-1, ASTM F606-1, DIN EN ISO 3506-1

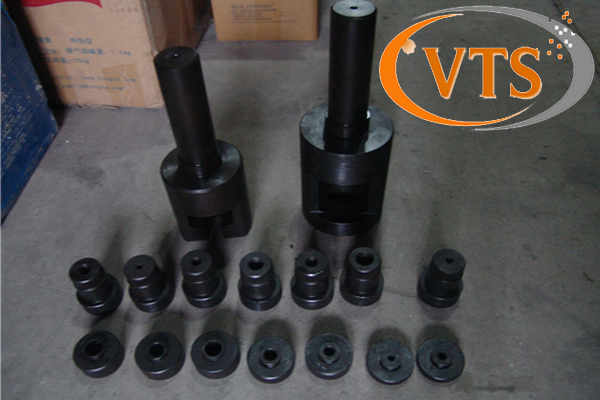

Fastener Holders M6-M42
300kN, 600kN 1000kN 2000kN Tensile Testing Machine, For Bolt Nut Testing of Fasteners.
Proof load test on threaded fasteners ISO 898-1.
- Description
- Inquiry
Description

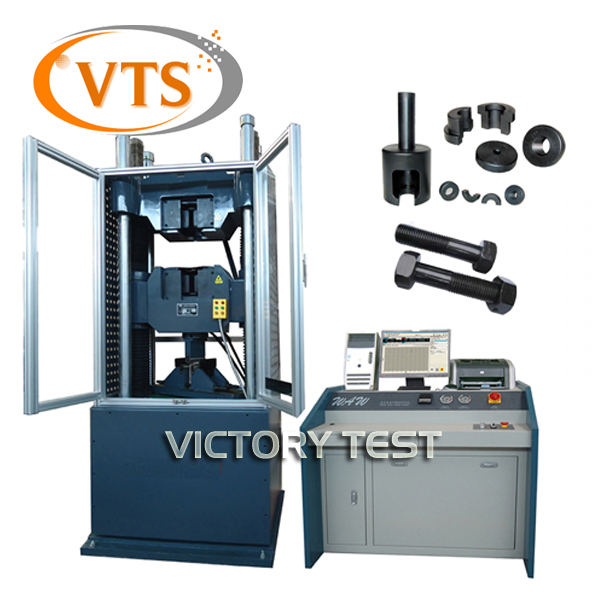

ASTM F606 Screws Bolts and Studs Tensile Test Machine
(Fastener Bolt nut Screw Tensile Testing Machine)
(DIN EN ISO 898-1, ASTM F606-1, DIN EN ISO 3506-1)
Introduction
(1). This WAW serries fastener bolt nut screw tensile testing machine is widely used for tensile test for fastener bolt nut screw.
(2). ASTM F606 Screws, Bolts and Studs Tensile Test Machine
(3). It adopts 4 columns with chrome plated and 2 leading screws, high stiffness, more stable.Press button operated hydraulic tensile grips, easy operate.
(4). It’s computer controlled servo hydraulic type, the piston goes up and high precision load cell directly measuring testing force, encoder measuring displacement and electric extensometer measuring specimen’s extension. The machine is calibrated according to ISO 75001 and ASTM E4.
It can conform to testing standard such as DIN EN ISO 898-1, ASTM F606-1, DIN EN ISO 3506-1 etc.
Testing Standard:
Testing of Bolts, Screws and Studs to DIN EN ISO 898-1, ASTM F606-1, DIN EN ISO 3506-1
Main technical parameters
| Parameter Model | WAW-300E | WAW-600E | WAW-1000E | WAW-2000E |
| Max. testing force (kN) | 300 | 600 | 1000 | 2000 |
| Accuracy | ±0.5% of reading value | |||
| Round specimen diameter range (mm) | φ10-φ32 | φ10-φ40 | φ13-φ60 | Φ15-φ70 |
| Flat specimen thickness range (mm) | 0-25 | 0-30 | 0-40 | 10-70 |
| Flat specimen width range (mm) | 75 | 90 | 100 | 120 |
| Tensile space (mm) | 600 | 740 | 800 | 950 |
| Compression space (mm) | 530 | 650 | 670 | 750 |
| Clearance between columns (mm) | 465 | 485 | 515 | 700 |
| Upper and lower compress plates size (mm) | φ120 | φ160 | 200×200 | φ240 |
| Distance of bending by pass roll (mm) | 30-400 | 30-430 | 30-380 | 50-430 |
| Max. piston stroke (mm) | 200 | 200 | 250 | 250 |
| Power supply | 380V±10%, 50Hz, three phase | |||
| Work environment | 10-40℃, Relative humidity≤80% | |||
| Dimension of host machine (mm) | 740×620×2058 | 790×690×2330 | 880×760×2660 | 1120×850×3270 |
| Dimension of control cabinet (mm) | 1150×870×650 | |||
| Weight (kg) | 1800 | 2500 | 3500 | 5000 |
